Máquina de corte por chorro de agua Wuxi 3000mm * 1500mm CNC 3 ejes

Control: PLC

Shifting: electro-hydraulic

Control Cooling: cooler/oil heat exchanger

Inlet water filter accuracy: ≤0.45μm

Oil-return filter accuracy: 20 μm

Working temp: 0-50°c

Outlet: UNF 3/8" Cooling in/out-let: NPT1"

Max orifice size: 0.33mm

Siemens or YASKAWA motor

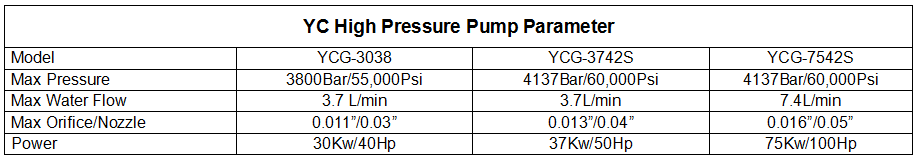

The high pressure pump designed by our company is easier to install and maintain, and the working pressure is stable, which fully ensures the working efficiency.

The whole set of intensifier assembly or main parts of intensifier assembly are imported from USA (Accustream/Hypertherm) directly.We are the partner of Hypertherm.

YC Waterjet Cnc Controller And Software（WEIHONG System）

1.17ʺLCD liquid crystal display.

2.DNC on-line working function.

3.Functions of returning arbitrary point,

bending and circular are working auto deceleration.

4. Function of cutting figure imitation display.

5. 80GB memory hard disk.

6. MITSUBISHI AC servo driver and motor.

7. 1GB memory card.

8. Multilingual function(Chinese English etc.).

9. Drive-by-wire and hand-hold controller.

10. NAIKY PCIMC-6A special software is special

for YC.

Noted：You can also choose the Italian ECS or ESA control system.

Waterjet Auto Sludge remove system

Remove the abrasive from the tank automatically,

separate the abrasive and water.Reduce the labor

force,improve work efficiency.The absorption pump

sucks up the mixture of sand and water from the tank

into a collection box when it works.There are plastic

woven filter bags in the collection box,water is recycled

to the machine tank, sand and the mixturefrom cutting

are collected into filter bags Inside. So as to achieve the

purpose of automatic collection to make it easy to clean.

DATA OF ABSORPTION PUMP
Data of Single pump
Flow rate：8 M³/H
Lift：50 M
Exit pressure：6 kgf/cm²
Absorption distance：7 M
Max. Diameter of solid particle which can get through：4.5mm
Inlet and outlet diameter of pump：40mm
Power：compressed air
Max. Inlet pressure：7 kg f/cm²
Max. Consumption of air：0.6 mm³/min
Diameter of air pipe：10mm
Collection box：1.6m*1.0m*1.0m

Many kinds of compounds exist in the running water (such as calcium carbonate, carbonic acid). As the machine works, the temperature rise will generate some substance of the reaction of chemistry or physics-as we called it furring, which will reduce the life of the high pressure system and increase the cost. After many years' experience, we have developed the system that can solve the problem. We would like to recommend you this optional part if your supplied water is low quality.

Quality requirement for water
Since the high-pressure water cutting work after high pressure, orifice small particles of impurities in raw water cutting and scaling, corrosion ion has an impact on the working life of equipment and precision, therefore, must be treated to the raw water supply equipment. High-pressure water jet cutting water quality requirements for the job: deionized water. Basic requirements for high pressure water jet cutting system with water quality water is greater than 0.5μm impurities must be removed, because in addition to the general water contains a certain amount of fine solid particles, there are many minerals dissolved in water, such as calcium carbonate, manganese , iron and silica, etc., not only reduces the life of the nozzle, but also affect the cohesion of the jet, thereby reducing the cutting efficiency. So be sure to remove it.

（Bevel Cutting 0-±10°）

  Max 5axis WaterJet Cutting Machine

  （Bevel Cutting 0-±45°）

Development

1999, YC Industry was established by Mr. Min, mainly engaged in manufacturing large production line.

2005, YC started to research and developed UHP water jet cutting equipment and cooperated with German KMT as well.

2008, YC started to cooperate with the UK agent.
2009, YC started to cooperate with USA Accustream whom is specialized in water jet parts and pumps.
2014, YC Industry built a new company Wuxi YC Waterjet Technology Co.,Ltd.
2015, YC WATERJET started to cooperate with RU agent.

2019,YC has sold the products to more than 50 countries .

Why us

We are engaged in machinery manufacturing since the year 1999,there are more than 20% workers with more than 8 years experience in water jet cutting field.

Our chief engineer Mr. Tian who started research of water jet when he was a university student has 20 years experience in water jet cutting field, and other technical persons have over 10 years experience.

YC is the partner of Accustream/Hyperthem, every year we have technical meetings with engineers from USA.

For different customers in different industries we will provide different solutions, Your water jet is tailored based on your individual needs.

Our Engineers go to many countries for installation and debugging every year.
